In marine aquaculture, storms, strong waves and changing currents can place extreme loads on floating cages, HDPE systems, buoys, mooring lines and anchor points. A common assumption is that using a larger-diameter marine mooring rope will automatically make the entire system safer.
However, rope diameter is only one factor affecting mooring system performance. A larger rope may provide higher breaking strength, but it does not automatically solve problems caused by shock loads, abrasion, poor mooring geometry, weak connection points or unsuitable working loads.
In this article, let’s explore with SIAM BROTHERS VIETNAM why simply increasing rope diameter is not always the best way to improve storm resistance, which technical factors should be considered, and how to select a suitable mooring rope for aquaculture and marine applications.
.jpg)

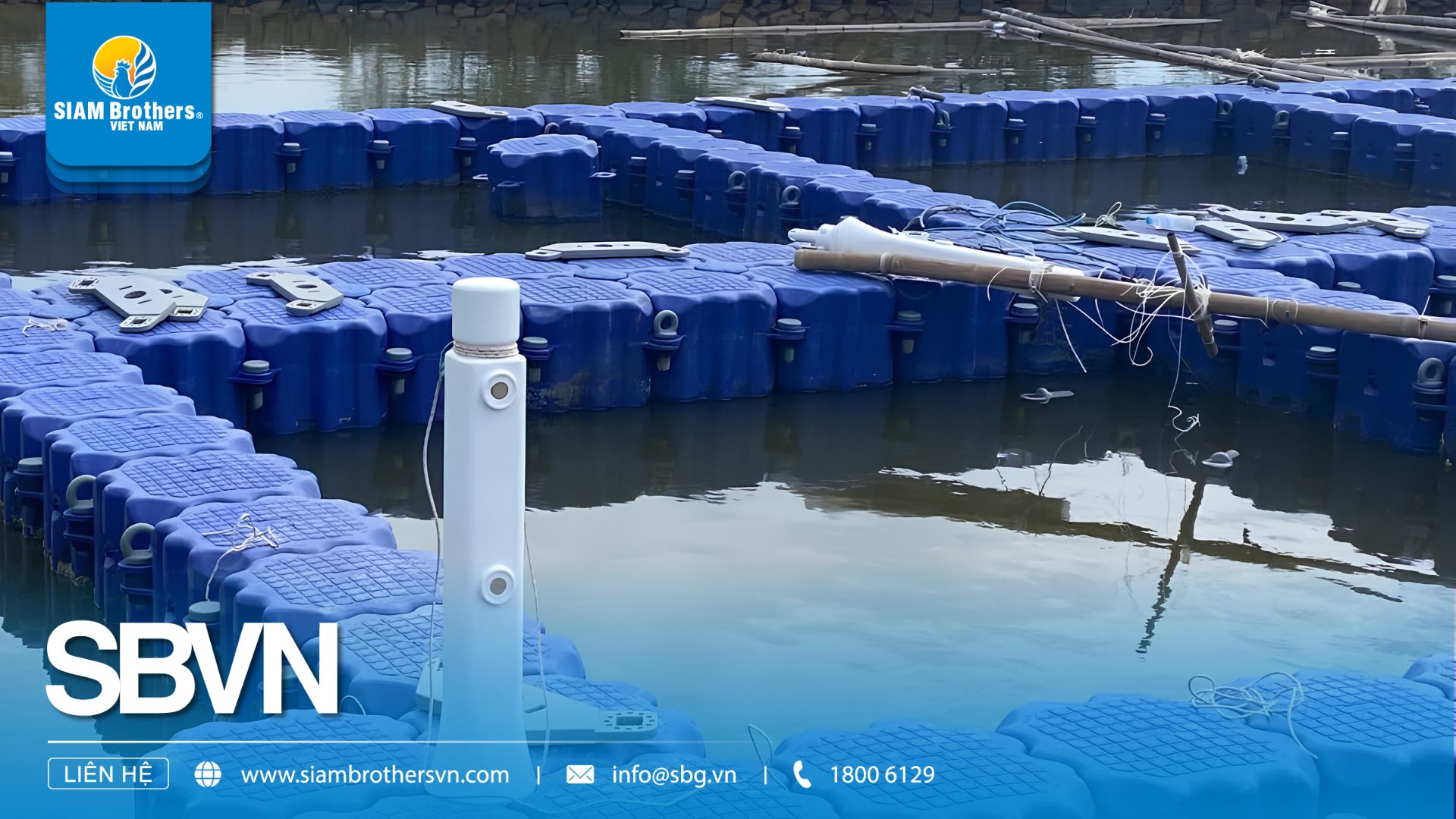

Marine mooring rope securing an aquaculture cage system during rough sea conditions
Question: Does increasing rope diameter automatically increase the safety of a marine mooring system?
Answer: Not necessarily. A larger rope diameter can increase the rope's breaking strength, but it does not guarantee that the entire mooring system can safely withstand storm conditions.
Under normal operating conditions, a floating cage may experience relatively stable loads. During a storm, however, wind, waves and currents create constantly changing forces. The mooring line can experience dynamic loading rather than simple static tension.
One important factor is shock load. When a mooring line suddenly becomes tight after being slack, the resulting impact force can increase rapidly. This can place excessive stress on the rope, connectors, anchor points and cage structure.
Therefore, selecting a marine mooring rope should not be based solely on diameter. The complete mooring system, including working load, dynamic loading, rope construction, connection points and environmental conditions, needs to be evaluated.
For more information 3 Signs Your HDPE Plastic Float Should Be Replaced Before the Storm Season
.jpg)

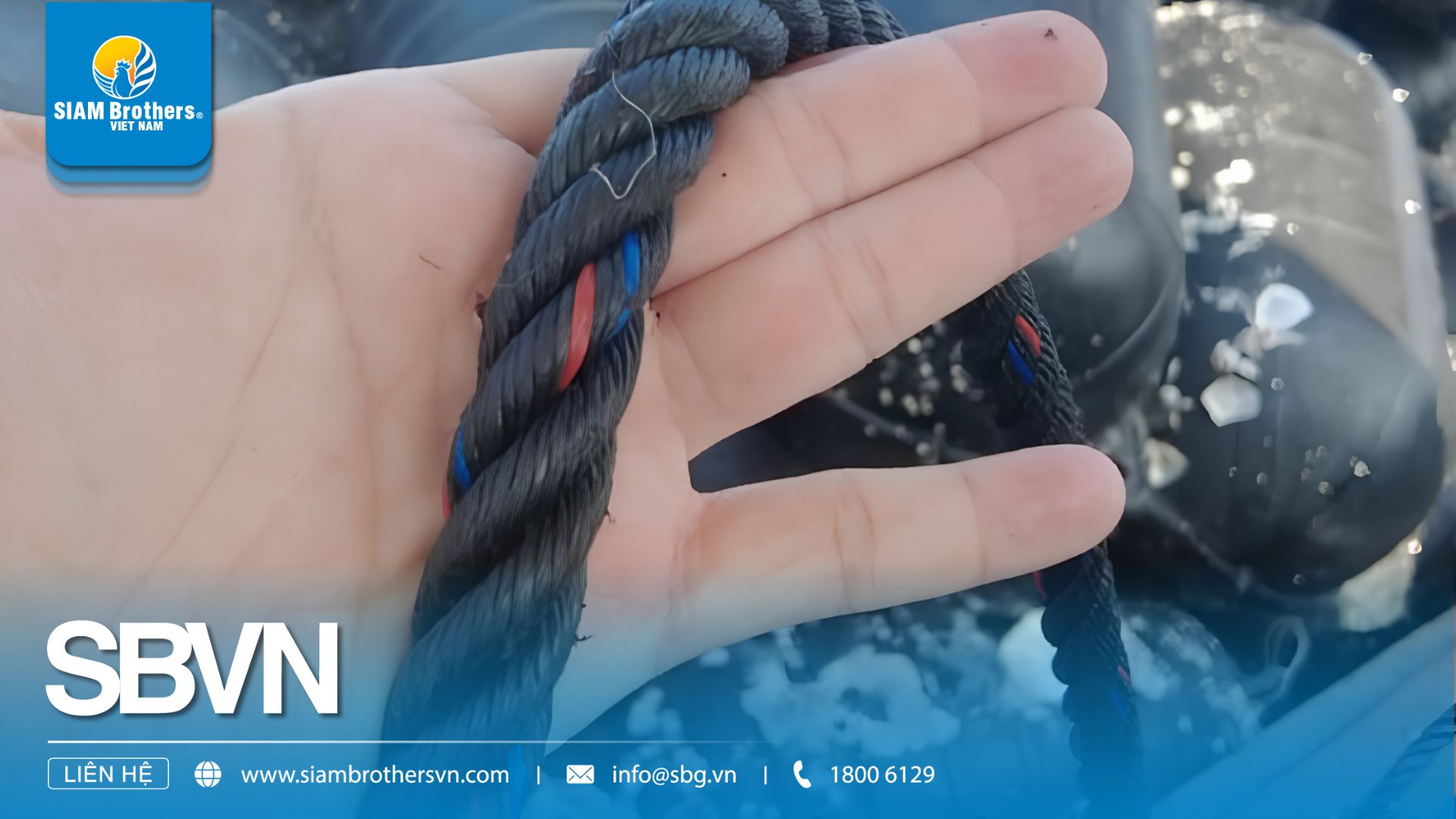

Factors affecting marine mooring rope strength including shock load, abrasion, UV exposure and connection points
One of the most important concepts in selecting a mooring rope is understanding the difference between breaking load and working load.
Breaking Load refers to the force at which a rope fails under specified test conditions. It should not automatically be treated as the load that the rope can safely handle during continuous operation.
A mooring system operates under changing environmental conditions. Repeated loading, bending, abrasion, UV exposure and sudden tension can gradually affect rope performance.
For this reason, the appropriate Working Load Limit (WLL) or working load should be considered together with a suitable safety factor.
A rope with a high breaking load may still be unsuitable if it is continuously operated too close to its maximum capacity.
When choosing a mooring rope for aquaculture, the actual operating conditions should therefore be considered rather than selecting the largest available diameter.
Shock load occurs when a rope experiences a sudden increase in tension.
This can happen when waves cause an aquaculture cage to move rapidly and a previously slack mooring line becomes tight. The resulting impact can generate forces significantly higher than the normal static load.
Shock loads can affect:
Mooring ropes
Shackles and connectors
Rope termination points
Anchor points
Floating cages
Buoys and supporting structures
This is why a suitable storm-resistant mooring system needs to account for dynamic loads, not just maximum static strength.
Even a large-diameter marine mooring rope can deteriorate rapidly if it repeatedly rubs against metal edges, fairleads, pulleys, shackles or other abrasive surfaces.
Marine environments can further accelerate rope degradation through:
Saltwater exposure
UV radiation
Sand and sediment
Repeated bending
Constant movement
Mechanical abrasion
If the main failure point is abrasion or a connection point, simply increasing rope diameter may not address the actual problem.
For more information Types of Floating Buoys for Fish Cages During the Storm Season
A larger-diameter rope generally weighs more per meter. For large aquaculture operations using long mooring lines, this can significantly increase material weight, transportation requirements and installation effort.
The cost of the mooring system can also increase without necessarily improving overall safety if the real weakness is located somewhere else.
A mooring rope is only one component of the overall system.
The rope needs to be compatible with:
Shackles
Fairleads
Pulleys
Thimbles
Connectors
Anchor points
Cage structures
If a larger rope is installed without checking the compatibility of the associated hardware, the weakest component may simply move from the rope to another part of the system.
For example, a high-strength rope connected to an undersized or unsuitable fitting can still result in system failure.
The strongest rope is not necessarily the best rope for every application.
Depending on the mooring configuration, the rope may need a suitable balance of:
Breaking strength
Working load
Elongation
Shock-load absorption
Flexibility
Abrasion resistance
UV resistance
Saltwater durability
Ease of handling
Therefore, increasing rope diameter should be considered as part of a broader engineering assessment rather than as a standalone solution.
For more information HDPE Floats vs. Foam Floats: Why Are Modern Floating Solutions Replacing Traditional Foam Floats?
Instead of asking only, “What rope diameter should I use?”, start by identifying the forces acting on the system.
Important factors include:
Cage size and total weight
Buoyancy of the floating system
Wave conditions
Wind speed
Current speed and direction
Number of mooring lines
Mooring line length
Mooring angle
Anchor configuration
Dynamic loading
Environmental exposure
Abrasion conditions
These factors help determine the appropriate mooring rope strength and system configuration.
A reliable aquaculture mooring system should be evaluated as a complete load path:
Environmental forces → floating cage → mooring lines → connectors → anchor points → seabed anchoring system
If one component has significantly lower capacity than the others, it can become the weakest point of the system.
Therefore, increasing the rope diameter without reviewing the entire load path may provide only a limited improvement.
Regular inspection is essential, particularly before periods of severe weather.
Look for signs such as:
Broken or exposed fibers
Excessive fuzzing
Surface abrasion
Changes in rope diameter
Permanent deformation
Hardening or stiffness
Damaged splices
Damage around connection points
Localized wear
Early inspection can help identify potential failure points before the mooring system is exposed to extreme storm loads.
The key point is simple: a high-strength marine mooring rope does not automatically make the entire mooring system storm-resistant.
System performance depends on how different components work together. Rope material, rope construction, breaking strength, working load, elongation, shock-load behavior, abrasion resistance, mooring geometry and connection hardware all contribute to the final level of safety.
If you are considering increasing rope diameter for storm protection, first identify why the existing system may be vulnerable.
Is the problem:
Excessive dynamic loading?
Insufficient safety factor?
Rope abrasion?
Poor mooring geometry?
Weak connection points?
Inadequate anchoring?
Rope degradation?
Unsuitable rope construction?
Identifying the actual failure mechanism is more effective than simply choosing a larger rope.
For marine and aquaculture applications, SIAM BROTHERS VIETNAM provides rope solutions designed for different marine operating requirements, with options based on material, rope construction, strength and application.
Not necessarily. A larger diameter can increase breaking strength, but actual performance also depends on rope material, construction, working load, abrasion, UV exposure, connections and operating conditions.
Breaking load is the force at which a rope fails under specified test conditions. Working load refers to the load under which the rope can be safely operated within the appropriate safety requirements.
Shock load is a sudden increase in rope tension caused by rapid movement or sudden loading. In storm conditions, wave-induced movement can create significant shock loads on mooring lines and connection points.
Repeated contact with metal edges, pulleys, fairleads or other surfaces can damage rope fibers and reduce performance. Abrasion protection and appropriate system design are therefore important.
Consider breaking strength, working load, rope construction, elongation, shock-load behavior, abrasion resistance, UV resistance, saltwater exposure, mooring configuration and the expected environmental conditions.
No. The correct approach is to assess the entire aquaculture mooring system, identify the expected loads and select compatible ropes, connectors and anchoring components with appropriate safety margins.
Increasing rope diameter alone is not enough to create a storm-resistant mooring system.
A larger marine mooring rope can provide higher strength, but overall system safety depends on much more than rope diameter. Dynamic loading, shock load, abrasion, working load, mooring geometry, connection hardware and anchoring must all be considered.
Instead of asking only, “How large should the rope be?”, the more important question is:
“How will the entire mooring system respond to wind, waves and current during extreme conditions?”
This system-based approach can help aquaculture and marine operators select more appropriate mooring solutions, improve reliability and reduce the risk of failure during severe weather.
For advice on marine ropes and mooring solutions for aquaculture and marine applications, contact SIAM BROTHERS VIETNAM.
